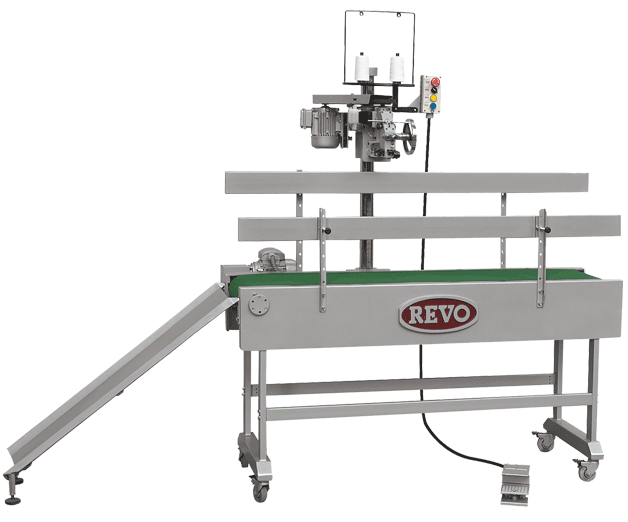

Table Conveyor Sewing System Revo-01

For use with model DA-R, DAD-R, NP-7A, NP-7D and NP-32.

Applications

OPERATION SPEED 350 to 450 bags per hour
CONVEYOR LENGTH 2mtr.
BELT WIDTH 300mm standard or as spacified by customerer
MAX BAG WEIGHT 25 kg.
SEWING HEAD HEIGHT 250mm to 1000mm
CONVEYOR MOTOR 1hp, 3 phase, 940 rpm electric motor
SEWING HEAD MOTOR 1hp, 3 phase, 2800 rpm electric motor
NRT WEIGHT 250 kg. without packing
